Product Description

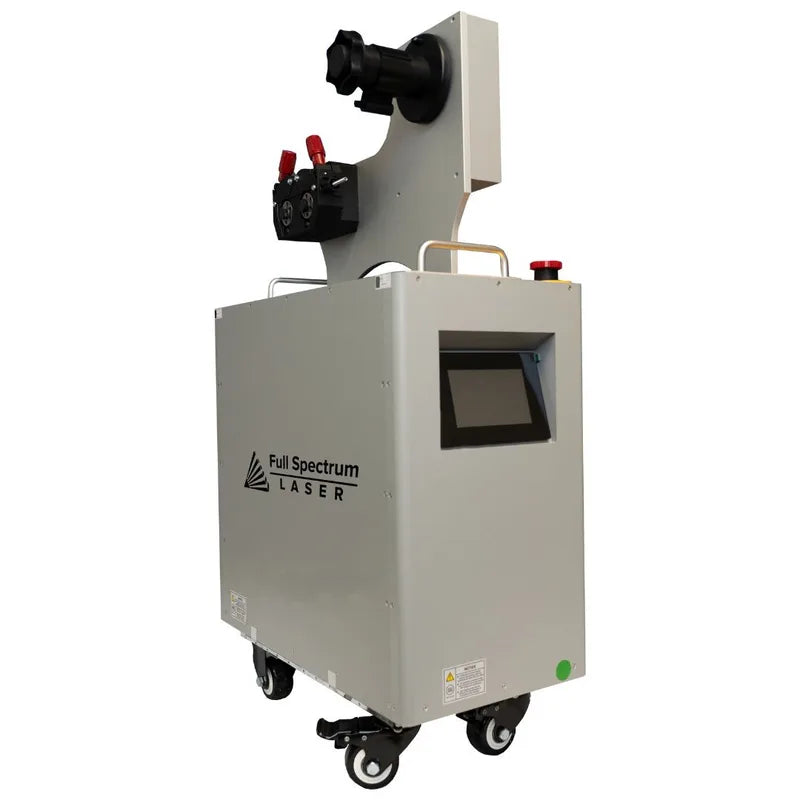

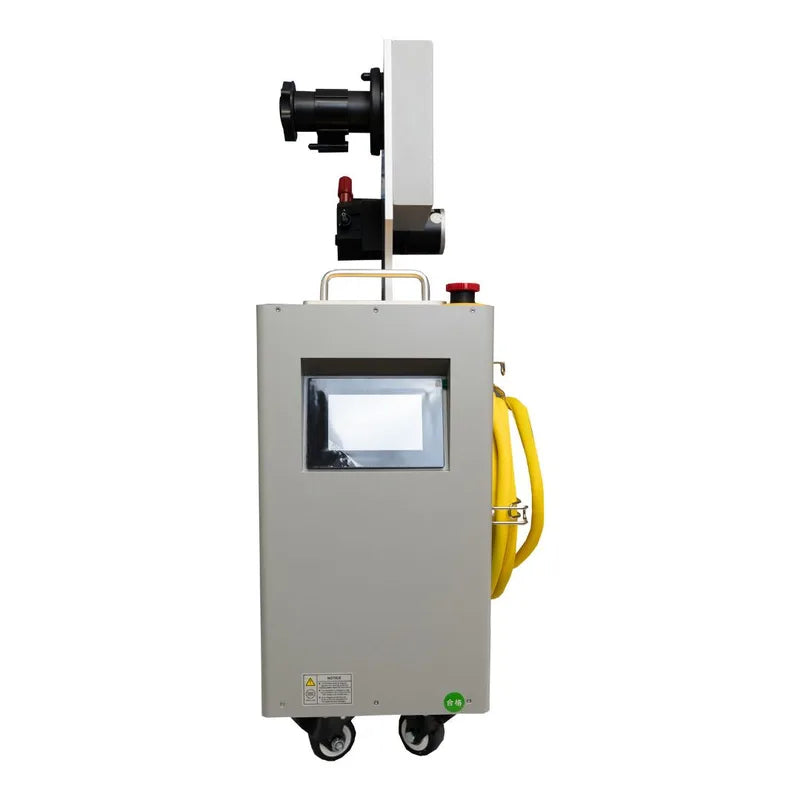

The FSL Multifunction Handheld kW Metal Laser is a versatile metal-processing system that combines handheld laser welding with CNC laser cutting and cleaning capabilities. The laser can be used as a portable welding tool or quickly mounted to an optional CNC gantry for automated cutting of metal designs.

Designed for professional workshops and manufacturing environments, the system provides a flexible way to weld, cut, and remove paint or rust from metal surfaces using a single laser platform. It can process materials including steel, stainless steel, aluminum, copper, and titanium.

Key Features

  • Multifunction kW laser platform
  • Handheld laser welding
  • CNC laser cutting capability with optional gantry
  • Metal cleaning capability
  • Welds and cuts most common metals
  • Compatible with steel, stainless steel, aluminum, copper, and titanium
  • Low-heat welding helps minimize part deformation
  • High-speed welding
  • High-frequency pulsed laser mode

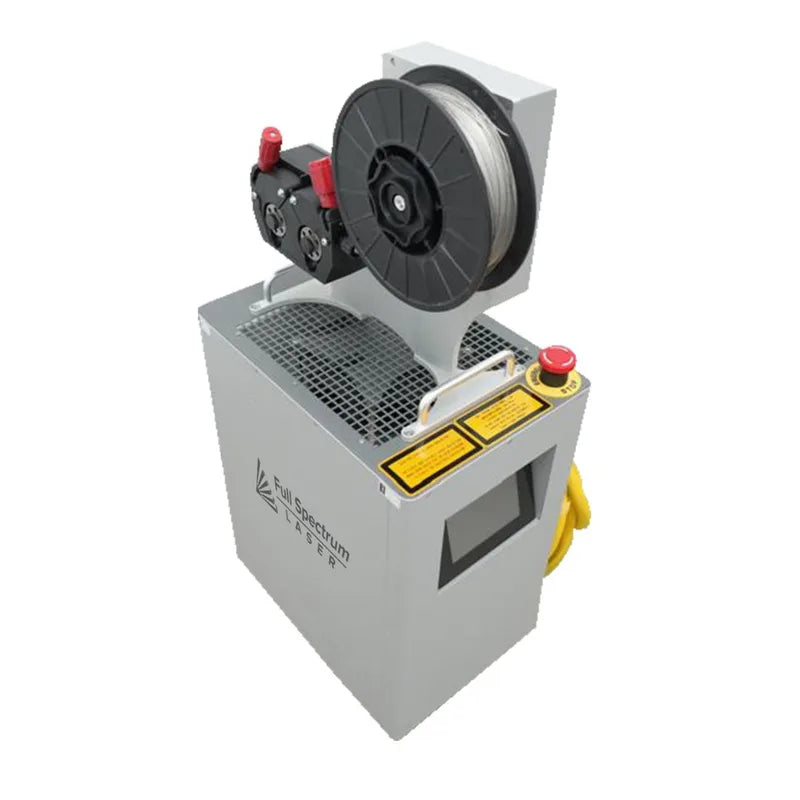

  • Wire-feeder compatible for bead welding

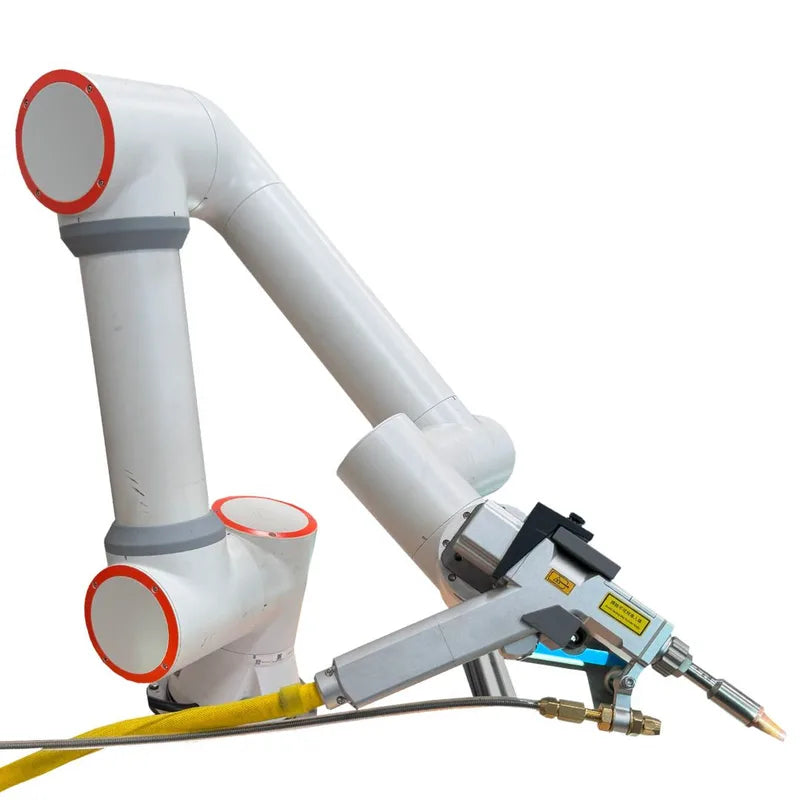

  • Optional 6-axis cobot integration
  • 220V single-phase operation
  • 20A power requirement
  • Designed and built in Las Vegas, USA
  • 1-year standard warranty

Specifications

Specification Details
Brand FSL
Model FSLWELD
Product Type Multifunction kW Metal Laser
Functions Welding / Cutting / Cleaning
Operation Handheld
CNC Capability Optional CNC Gantry
Robotic Capability Optional RoboLaze Cobot Arm
Compatible Metals Steel / Stainless Steel / Aluminum / Copper / Titanium
Laser Mode High-Frequency Pulsed
Power Requirement 220V Single Phase
Current 20A
Weight 500 lbs
Dimensions 15" Ă— 24" Ă— 42"
Software RetinaEngrave
Design & Build Las Vegas, USA
Standard Warranty 1 Year

Handheld Laser Welding

The FSL system is designed to make laser welding easier to learn and deploy than many traditional welding processes. Its handheld welding gun provides controlled laser energy with relatively low heat input, helping reduce deformation of the workpiece.

The system can perform welding on a variety of metals, including steel, stainless steel, aluminum, copper, and titanium. It can also perform spot welding and bead welding when used with a wire feeder.

CNC Metal Laser Cutting

When paired with the optional CNC gantry, the handheld laser can be converted into a CNC metal cutting system. The gantry can follow vector designs and cut files such as DXF, SVG, and PDF formats.

This provides a flexible solution for workshops that need both handheld welding and CNC metal fabrication from the same laser platform.

Metal Cleaning

The multifunction design also allows the system to be configured for laser cleaning applications, including the removal of paint and rust from metal surfaces.

This adds another capability for fabrication, restoration, preparation, and maintenance workflows without requiring a separate laser platform.

Fast, Low-Heat Welding

Laser welding concentrates energy into a small area, helping produce fast welds while reducing the amount of surrounding material exposed to heat. This can help minimize deformation and maintain the appearance of finished parts.

The system also supports one-sided spot welding, allowing certain joining operations to be performed without access to the back side of the workpiece.

What's Included

  • Laser Welding Gun
  • Workpiece Clamp
  • Welding Nozzle Tips
  • Laser Safety Glasses, OD 6+
  • Getting Started Guide
  • High-Frequency Pulsed Laser Mode

Applications

  • Metal fabrication
  • Laser welding
  • Metal cutting
  • Rust removal
  • Paint removal
  • Sheet metal work
  • Stainless steel fabrication
  • Aluminum welding
  • Copper welding

Warranty

Manufacturer's Limited Warranty. Please refer to warranty policy for complete warranty coverage, exclusions, and support details.
