Product Description

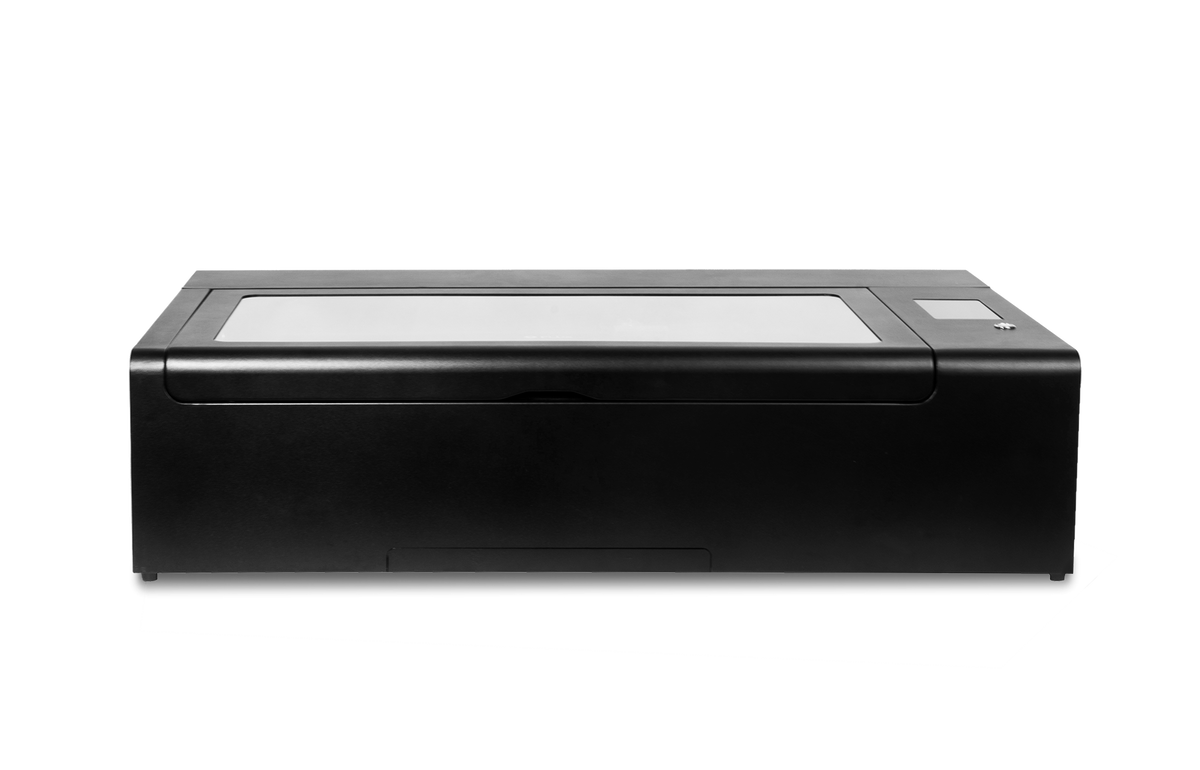

The FLUX HEXA is a professional CO₂ laser cutter and engraver designed for businesses, workshops, makers, and creators who need a larger working area and higher production efficiency. Its 730 × 410 mm workspace provides 33% more working area than the FLUX Beambox Pro, giving you additional room for larger projects and batch processing.

Powered by a 60W high-spec CO₂ laser tube and a Cortex M4 core chip, HEXA combines strong cutting performance with engraving speeds of up to 900 mm/s. This makes it suitable for both detailed creative work and production environments where processing time matters.

The machine can cut materials up to 21 mm thick in a single pass, depending on the material. For precision engraving, the optional 1.5-inch focus lens can provide resolution of up to 1,000 DPI, allowing for finer details and sharper artwork.

An integrated electric elevation platform makes focusing easier by allowing the working height to be adjusted electronically. The machine also includes a built-in cleaning slot for more convenient maintenance.

HEXA provides multiple ways to connect and operate, including Wi-Fi, USB, Ethernet, flash drives, and mobile devices. FLUX's Beam Studio software supports multiple operating systems and common professional design formats, making it easy to incorporate HEXA into existing creative workflows.

Safety features include movement sensors, temperature monitoring, fire alarms, dampers, and a liftable rear cover, providing additional protection during operation.

Key Features

  • Professional 60W CO₂ laser
  • Large 730 × 410 mm working area
  • Up to 900 mm/s engraving speed
  • Up to 1,000 DPI with optional 1.5-inch focus lens
  • Cuts materials up to 21 mm in one pass, depending on material
  • Electric elevation platform
  • Automatic height adjustment
  • Built-in cleaning slot
  • Wi-Fi, USB, and Ethernet connectivity
  • Flash drive and mobile device support
  • Beam Studio software
  • Compatible with professional design software
  • Integrated safety sensors and fire protection
  • 10,000-hour laser tube lifespan
  • 1-year laser tube warranty

Specifications

Specification Details
Brand FLUX
Model HEXA
Laser Type CO₂
Laser Power 60W
Working Area 730 × 410 × 125 mm
Maximum Engraving Speed 900 mm/s
Maximum Cutting Thickness Up to 21 mm*
Maximum Resolution 1,000 DPI**
Laser Tube Lifespan Up to 10,000 hours
Focus Lens Standard lens; optional 1.5-inch lens
Platform Electric Elevation Platform
Connectivity Wi-Fi / USB / Ethernet
Mobile Device Support Yes
Software Beam Studio
Supported File Formats SVG / PNG / JPG / DXF / PDF / AI
Core Processor Cortex M4
Safety Features Safety Sensors / Overheat Warning / Fire Alarm
Rear Cover Liftable
Warranty 1 Year on Laser Tube


* Cutting thickness depends on the material and processing conditions.
** 1,000 DPI capability requires the optional 1.5-inch focus lens.

Working Area & Performance

The 730 × 410 mm work area gives HEXA enough capacity for larger materials and batch production while maintaining a relatively compact footprint for a professional laser system.

Its 900 mm/s maximum engraving speed helps reduce processing times for repetitive jobs, while the 60W laser provides the cutting power needed for a wide variety of materials.

Precision Engraving

For applications where fine detail is important, the optional 1.5-inch focus lens allows HEXA to reach up to 1,000 DPI engraving resolution.

This makes the machine suitable for:

  • Fine text
  • Logos
  • Detailed graphics
  • Patterns
  • Product personalization
  • High-resolution artwork

Smart Design

Electric Elevation Platform

The integrated electric elevation platform allows the working height to be adjusted with a simple control, making material positioning and focusing more convenient.

Built-In Cleaning Slot

A dedicated cleaning slot simplifies routine maintenance and helps make cleanup more efficient.

Flexible Connectivity

HEXA supports multiple connection methods, including:

  • Wi-Fi
  • USB flash drive
  • USB cable
  • Ethernet
  • Mobile devices

Software

Beam Studio provides a full-featured environment for laser cutting and engraving and is available across multiple platforms.

Compatible file formats include:

  • SVG
  • PNG
  • JPG
  • DXF
  • PDF
  • AI

Beam Studio can also work alongside professional design applications such as Adobe Illustrator, Adobe Photoshop, Affinity Designer, AutoCAD, SketchUp, SolidWorks, CorelDRAW, and Rhinoceros.

What's Included

  • FLUX HEXA laser cutter and engraver
  • 60W CO₂ laser tube
  • Standard focus lens
  • Electric elevation platform
  • Integrated safety system
  • Built-in cleaning slot
  • Standard connection accessories
  • Beam Studio software
  • User documentation

Warranty

1-Year Laser Tube Warranty. The FLUX HEXA laser tube is rated for up to 10,000 hours of service and is backed by a 1-year warranty.
