Product Description

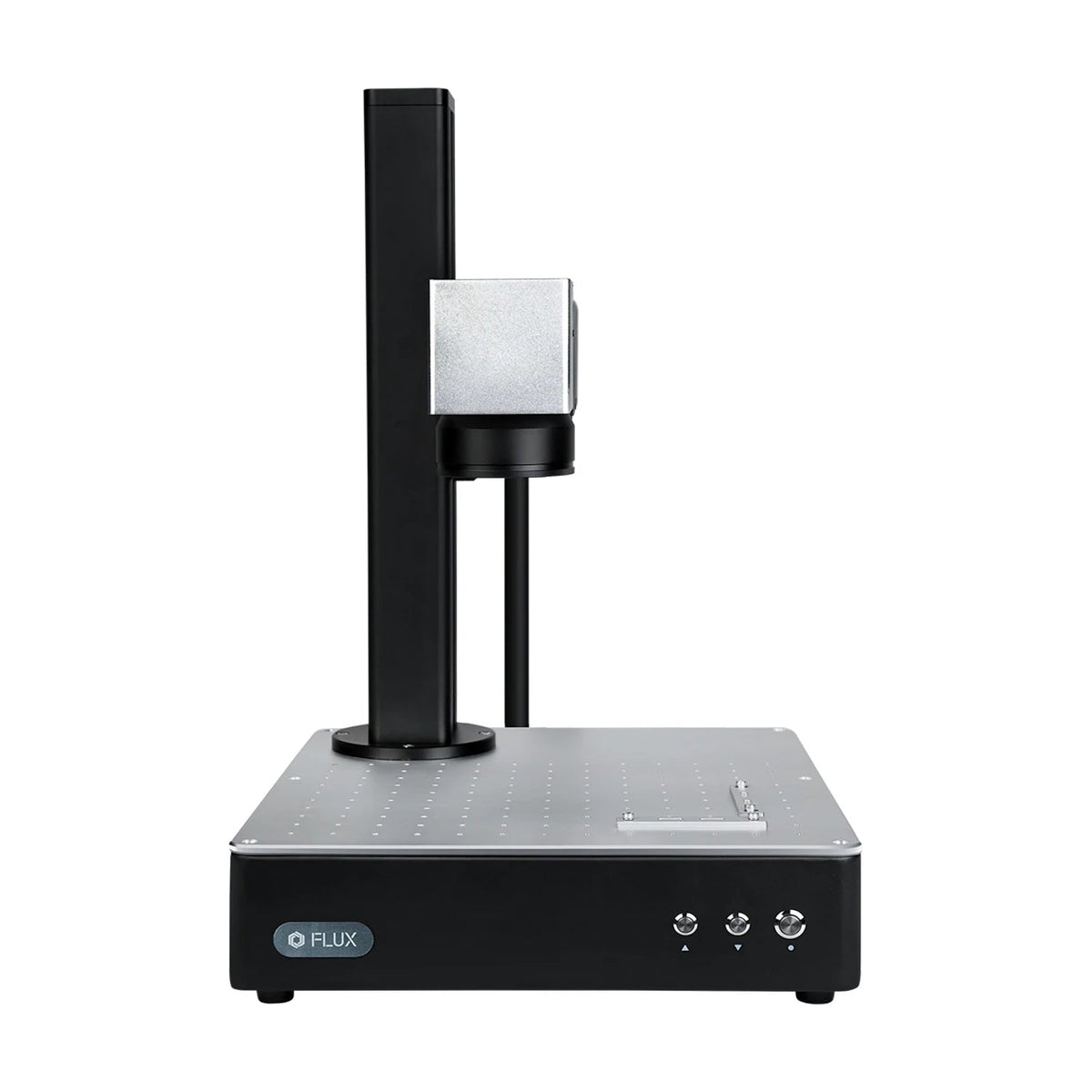

The FLUX Promark Desktop is a professional fiber laser engraver designed for fast, detailed, and repeatable marking. Combining high-speed processing with a compact desktop design, it provides an efficient solution for businesses, makers, and professionals working with customized products, components, and precision markings.

With engraving speeds of up to 10,000 mm/s and a fine 0.03 mm laser spot, Promark Desktop can reproduce intricate graphics, small lettering, logos, and detailed patterns with excellent definition. Its 220 × 220 mm work area provides enough space for individual products as well as multiple smaller pieces.

Getting started is straightforward: import your design, position the material using the camera or red-light preview, adjust the focus, and begin marking. The built-in camera provides a live view of the work area, making it easier to position artwork accurately before processing.

The motorized lift and dynamic focus system provide additional control over the focal distance, allowing users to switch between fine marking and deeper engraving applications. The system also supports 3D engraving for projects that require added depth and dimension.

Promark Desktop works with a wide range of materials, including metals, dark acrylic, plastic, and stone. It is suitable for everything from industrial tool identification to personalized jewelry, keychains, signage, and other custom products.

For workflow flexibility, the machine works with FLUX Beam Studio and LightBurn, while support for FLUX rotary accessories expands its capabilities to cylindrical products.

Key Features

  • High-speed fiber laser engraving up to 10,000 mm/s
  • Fine 0.03 mm laser spot
  • 220 × 220 mm working area
  • Motorized lift with dynamic focusing
  • Built-in camera preview
  • Red-light positioning preview
  • 3D engraving capability
  • Compatible with metals, dark acrylic, plastic, and stone
  • Beam Studio and LightBurn compatibility
  • Supports FLUX Chuck Rotary and Roller Rotary accessories
  • Emergency stop button
  • Protective safety goggles

Specifications

Specification Details
Brand FLUX
Model Promark Desktop
Available Options D20 – 20W / D50 – 50W
Laser Type Fiber Laser
Laser Power 20W / 50W
Laser Safety Classification Standard: Class 4
Safe+ Classification Class 1
Laser Wavelength 1064 nm
Laser Spot Size 0.03 mm
Maximum Engraving Speed 10,000 mm/s
Work Area 220 × 220 mm
Positioning Camera Preview / Red Light Preview / Dynamic Focus
Software Beam Studio / LightBurn
Connection USB-A
Supported Files JPG, PNG, DXF, AI, PDF, BMP
Power Input 100–250V
Safety Features Emergency Stop Button, Protective Safety Goggles
Standard Dimensions 374 × 490 × 597 mm
Standard Weight 18.2 kg

Material Compatibility

Promark Desktop is designed for marking and engraving applications involving:

  • Metals
  • Dark acrylic
  • Plastic
  • Stone

It can be used for both functional identification and decorative customization, including tools, jewelry, keychains, and other finished products.

What's Included

  • FLUX Promark Desktop Fiber Laser Engraver
  • Selected laser power configuration
  • Built-in camera preview system
  • Motorized lift and dynamic focus system
  • Red-light positioning system
  • Protective safety goggles
  • Emergency stop system
  • Required power and connection accessories
  • Beam Studio software
  • User documentation

    Ideal Applications

    • Product personalization
    • Jewelry engraving
    • Tool marking
    • Industrial identification
    • Nameplates and tags
    • Promotional products
    • Custom keychains
    • Metal gifts
    • Small-batch production
    • Detailed decorative engraving

    Downloads

    • User Guide

    Warranty

    Manufacturer's Limited Warranty. Please refer to warranty policy for complete warranty coverage, exclusions, and support details.
