Product Description

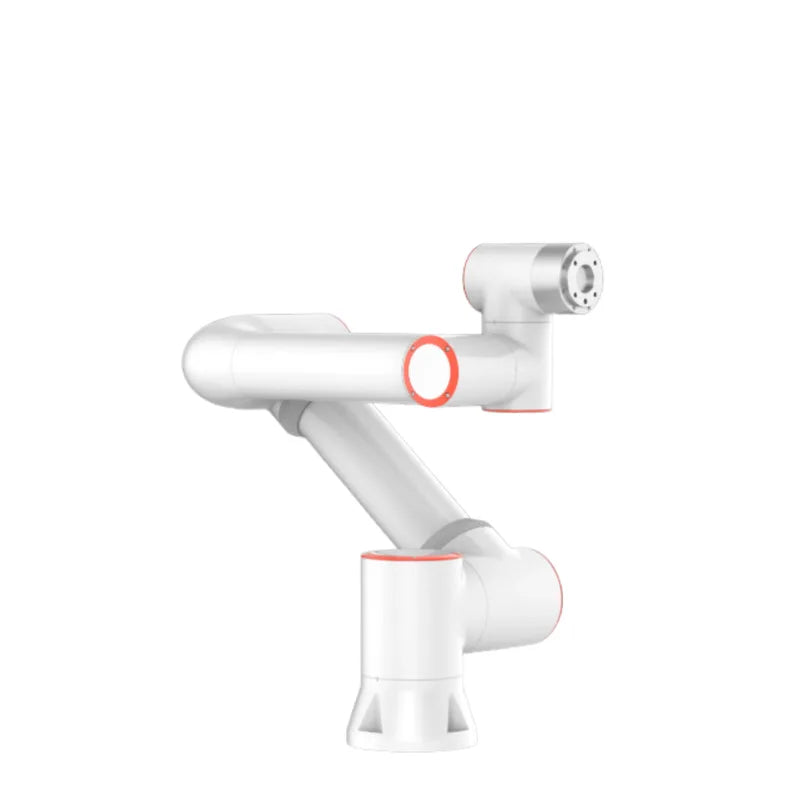

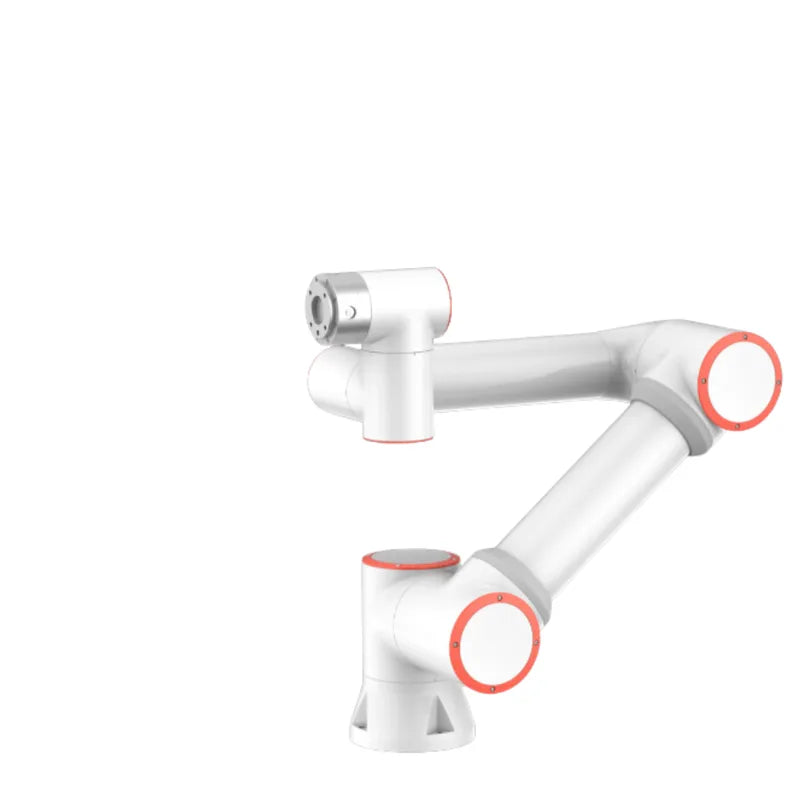

The FSL RoboLaze is a versatile collaborative robot arm designed to automate repetitive production tasks such as laser welding, glass picking, material handling, and precision positioning. Its intuitive operation, high repeatability, and flexible programming make it a practical automation solution for workshops and production environments.

With 0.02 mm position repeatability, 18-bit encoders on all axes, and a standard 5 kg payload with 922 mm reach, RoboLaze provides precise and consistent motion for applications where accuracy and repeatability are essential. Higher-payload and longer-reach configurations are also available for more demanding applications.

Key Features

  • 6-axis collaborative robot arm
  • 0.02 mm position repeatability
  • 18-bit encoders on all axes
  • Standard 5 kg payload
  • 922 mm reach
  • Higher payload and reach configurations available
  • Easy drag-and-position programming
  • Replay saved robot movements
  • Python and C++ programming interfaces
  • Supports automated welding
  • Compatible with servo parallel grippers
  • Compatible with FSL Laser Welder attachment
  • Suitable for glass picking and material handling
  • Designed for repetitive production workflows

Specifications

Specification Details
Brand FSL
Model RoboLaze
SKU RBLZ1
Product Type Collaborative Robot Arm
Axes 6-Axis
Position Repeatability 0.02 mm
Encoders 18-bit on all axes
Standard Payload 5 kg
Standard Reach 922 mm
Maximum Available Payload Up to 40 kg
Maximum Available Reach Up to 2 m
Programming Python / C++
Robot Control Drag-to-position / Replay motion
Welding Compatible with FSL Laser Welder
Picking Compatible with Servo Parallel Grippers
Weight 200 lbs
Applications Welding / Glass Picking / Material Handling / Automation

Easy-to-Use Collaborative Robot

RoboLaze is designed to make robotic automation more accessible. Operators can drag the cobot into position and replay the desired motion, making it easier to create repeatable workflows without requiring extensive robotics experience.

This makes RoboLaze suitable for businesses looking to automate repetitive processes while maintaining consistent movement and positioning.

Precision Where It Matters

With 0.02 mm position repeatability and 18-bit encoders on every axis, RoboLaze is designed for highly consistent motion. This precision can help improve repeatability and quality across repetitive production tasks.

Automate Laser Welding

RoboLaze can be paired with FSL's Laser Welder attachment to create an automated laser welding system. Automating repetitive welding operations can help free operators for other tasks while maintaining consistent motion throughout production.

Glass Picking & Material Handling

The cobot can also be configured for picking and handling applications using compatible servo parallel grippers. This makes it suitable for workflows involving glass, components, and other objects that need to be repeatedly positioned or transferred.

Flexible Payload & Reach

The standard RoboLaze configuration provides a 5 kg payload and 922 mm reach. For applications requiring larger working envelopes or heavier payloads, FSL offers configurations reaching up to 40 kg payload and 2 m reach.

Advanced Programming

For users who need more sophisticated automation, RoboLaze provides Python and C++ interfaces for advanced programming and integration. This allows the robot to be incorporated into more complex automation workflows and custom production systems.

What's Included

  • FSL RoboLaze Cobot Arm
  • Standard 5 kg payload configuration
  • 922 mm reach configuration
  • Robot control system
  • Standard robot programming functionality

Applications

  • Automated laser welding
  • Glass picking
  • Material handling
  • Repetitive production tasks
  • Robotic loading and unloading
  • Component positioning
  • Production automation
  • High-repeatability workflows
  • Custom robotic applications
  • Laser processing automation

Warranty

Manufacturer's Limited Warranty. Please refer to warranty policy for complete warranty coverage, exclusions, and support details.
