Product Description

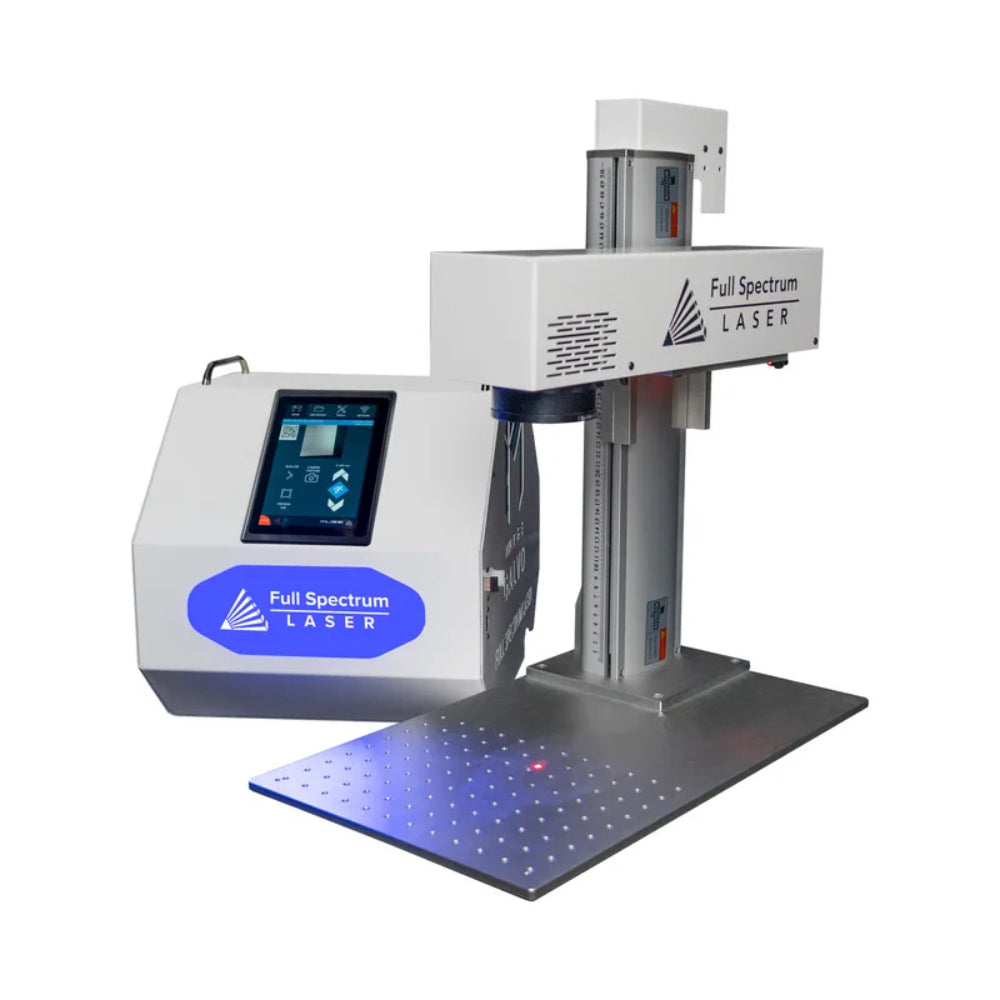

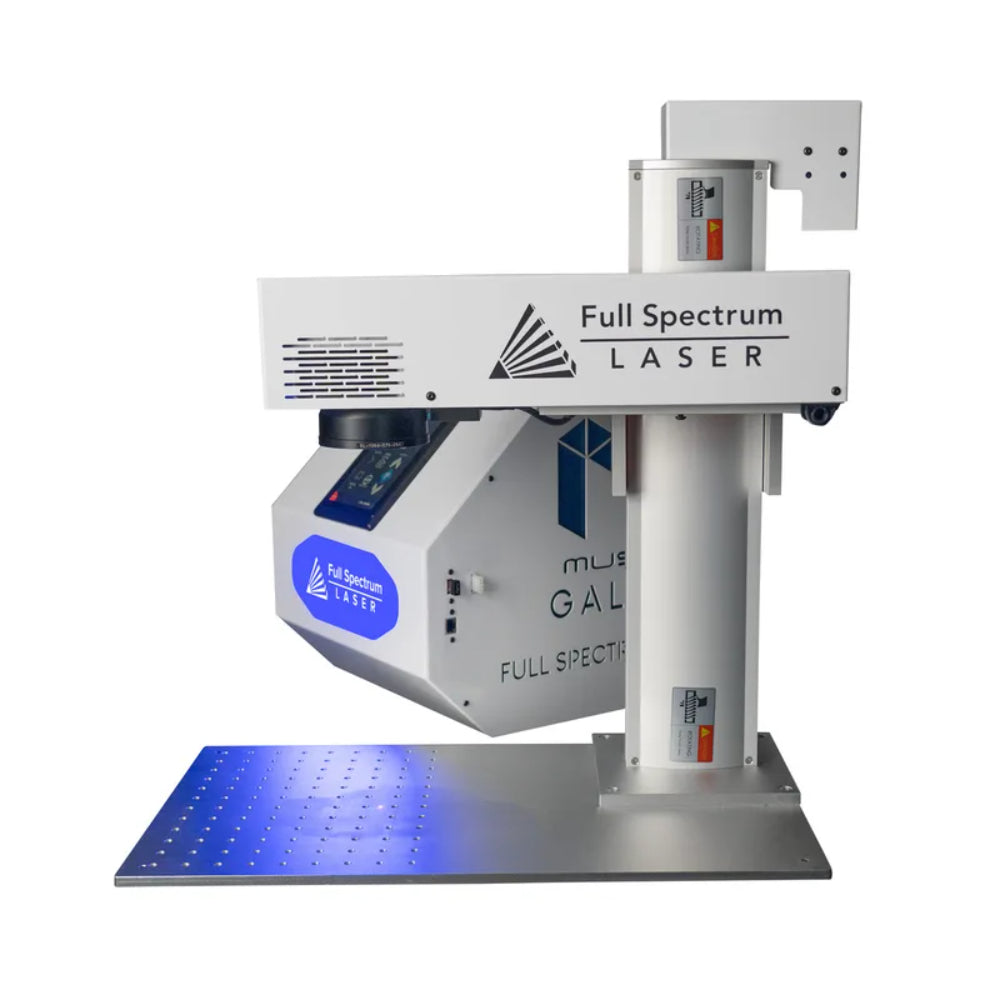

The FSL Economy Fiber Laser is a professional fiber laser engraving and marking system designed for precise, efficient marking on metals and other compatible materials. Its 1064nm fiber laser source provides fine detail and reliable performance for applications ranging from product personalization to industrial identification.

Available in 20W standard or with a 50W upgrade, the Economy Fiber can be configured to match different production requirements. The 20W configuration is well suited to detailed engraving and general marking, while the 50W upgrade provides additional power for faster production and deeper marking applications.

Key Features

  • 1064nm fiber laser technology
  • 20W standard laser
  • 50W upgrade available
  • Designed for precision engraving and marking
  • Fast galvo scanning system
  • Excellent detail and repeatability
  • Suitable for metal marking and personalization
  • Compact professional design
  • Ideal for small businesses and production environments
  • FSL's RetinaEngrave laser control software
  • Low-maintenance solid-state laser source

Specifications

Specification Details
Brand FSL
Product Economy Fiber
Laser Type Fiber Laser
Wavelength 1064nm
Standard Power 20W
Upgrade Power 50W
Laser Source Pulsed Fiber Laser
Marking System Galvo
Software RetinaEngrave
Primary Application Laser Engraving & Marking
Cooling Air Cooled
Laser Technology Solid-State Fiber
Intended Materials Metals and other compatible materials



Precise Fiber Laser Marking

The Economy Fiber uses a 1064nm fiber laser to produce clean, detailed marks with excellent consistency. The technology is particularly effective for permanent identification, logos, text, serial numbers, graphics, and customized designs.

Designed for Metal Engraving

Fiber lasers are particularly well suited for marking a wide range of metal surfaces. The Economy Fiber can be used for applications involving materials such as:

  • Stainless steel
  • Aluminum
  • Steel
  • Copper
  • Brass
  • Titanium
  • Other compatible metals

Material performance can vary depending on the specific alloy, finish, laser power, and processing parameters.

20W Standard or 50W Upgrade

The 20W standard configuration provides an efficient solution for businesses and makers who need reliable precision marking without requiring maximum laser power.

For higher production demands, the 50W upgrade provides significantly more laser power, helping improve processing speed and enabling more demanding marking applications.

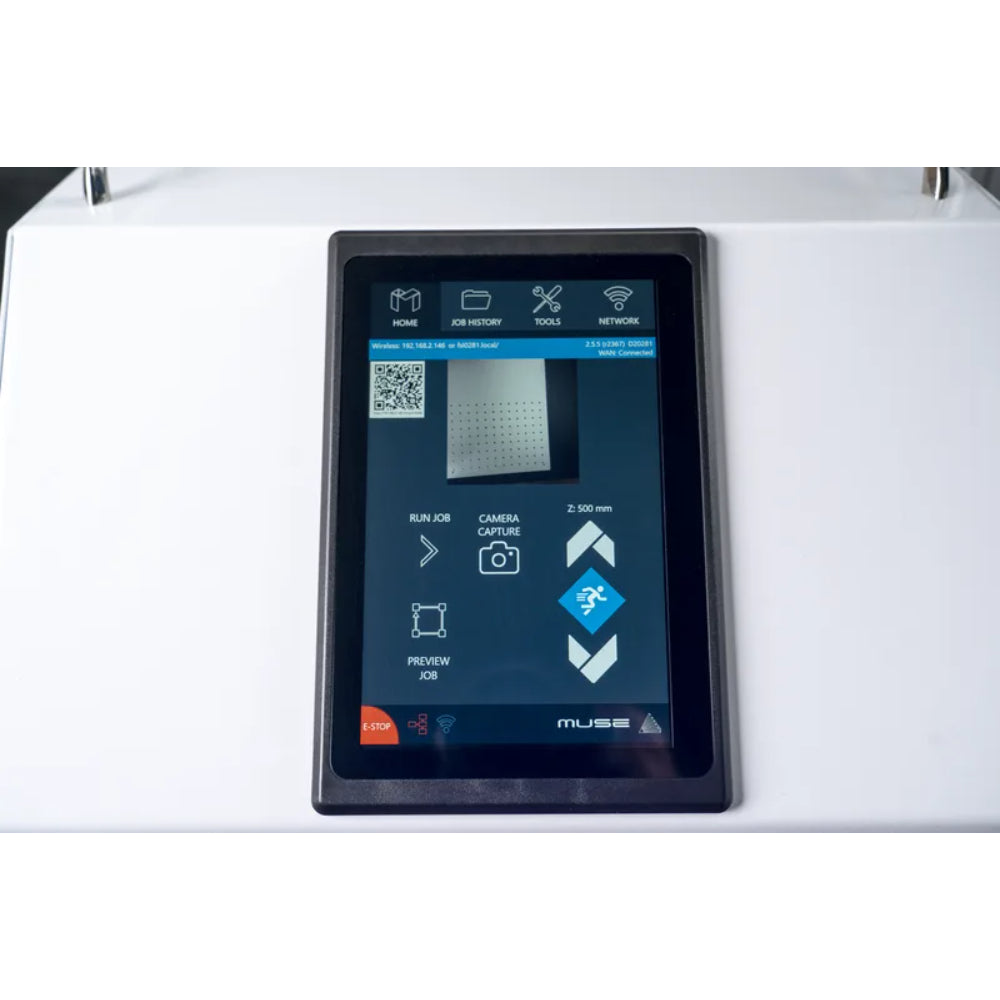

RetinaEngrave v3.0 Software

Muse Core uses RetinaEngrave v3.0, FSL's self-hosted, browser-based laser control and design software.

Because the software runs through the machine and is accessed using a web browser, there is no traditional software installation required. Connect to the machine, enter its IP address in a compatible browser, and access the laser control interface.

Compatible Systems

  • Windows
  • macOS
  • Linux

What's Included

  • FSL Economy Fiber Laser System
  • 20W fiber laser source
  • Galvo scanning system
  • Laser control system
  • RetinaEngrave software
  • Standard accessories required for operation

Optional: 50W laser upgrade.

    Ideal Applications

    • Metal engraving
    • Product personalization
    • Jewelry marking
    • Tool marking
    • Parts identification
    • Industrial component marking
    • Promotional products
    • Tumbler engraving

    Warranty

    Manufacturer's Limited Warranty. Please refer to warranty policy for complete warranty coverage, exclusions, and support details.
